Ortofon

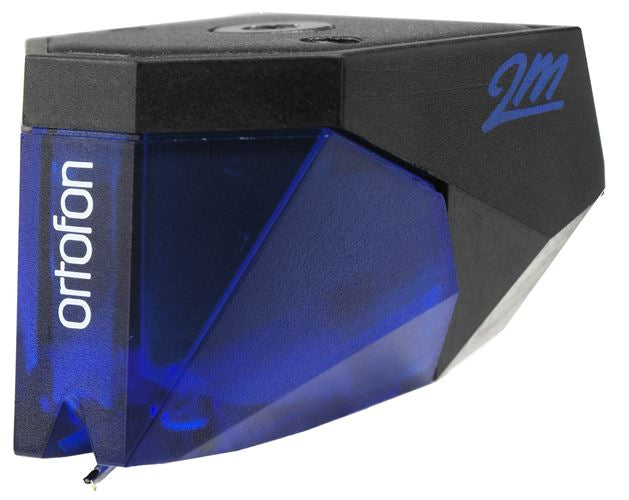

Ortofon 2M Blue Phono Cartridge

Free Shipping
Free Shipping
$299

Only 1 in stock!

Designed for accurate retrival of information on your records the 2M Blue is for those who prefer a more dynamic open sound for their vinyl listening sessions.

Features:

  • an improved engine, which provides an increased output of 5.5mV and an optimized sound reproduction and a high level of sonic accuracy
  • Nude Elliptical diamond and split pole pins with a copper wire
  • 2M Blue adds more dynamics and resolution, sounds more open and reproduces more details than 2M Red

Technical Specs:

  • Output voltage at 1000 Hz, 5cm/sec.  -   5,5 mV
  • Channel balance at 1 kHz  -   1,5 dB
  • Channel separation at 1 kHz  -  25 dB
  • Channel separation at 15 kHz  - 15 dB
  • Frequency range at - 3dB  -  20-25.000 Hz
  • Frequency response  -  20-20.000 Hz + 2 / - 1 dB
  • Tracking ability at 315Hz at recommended tracking force  -  80 µm
  • Compliance, dynamic, lateral  -  20 µm/mN
  • Stylus type  -  Nude Elliptical
  • Stylus tip radius  -  r/R 8/18 µm
  • Tracking force range  -  1,6-2,0g (16-20 mN)
  • Tracking force, recommended  -  1,8 g (18 mN)
  • Tracking angle  -  20°
  • Internal impedance, DC resistance  -  1,3 kOhm
  • Internal inductance  -  700 mH
  • Recommended load resistance  - 47 kOhm
  • Recommended load capacitance  -  150-300 pF
  • Cartridge colour, body/stylus  -  Black/Blue
  • Cartridge weight  -  7,2 g
  • 2M PnP MkII cartridge with integrated headshell weight  -  20 g
  • 2M PnP MkII cartridge with integrated headshell length - 52 mm
