Ortofon

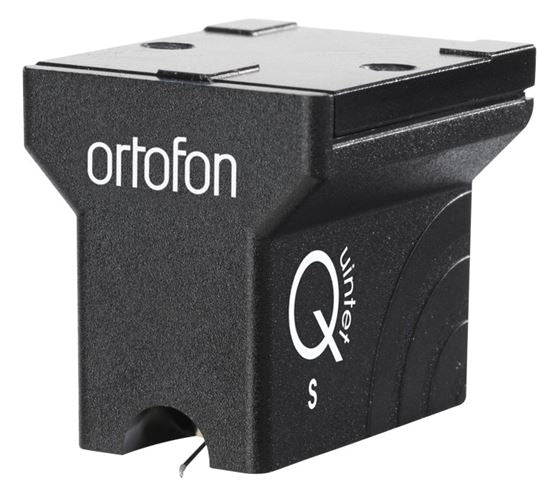

Ortofon MC Quintet S Black Phono Cartridge
$1,484
This moving coil cartridge is built with a Nude Shibata diamond mounted on a sapphire cantilever.
Technical Specs:
-
Output voltage at 1000 Hz, 5cm/sec. – 0.3 mV
-
Channel balance at 1 kHz – < 1.0 dB
-
Channel separation at 1 kHz – > 23 dB
-
Channel separation at 15 kHz – > 15 dB
-
Frequency range at – 3dB – 20 – 25.000 Hz
-
Frequency response 20-20.000 Hz – +/- 1.5 dB
-
Tracking ability at 315Hz at recommended tracking force *) – 80 µm
-
Compliance, dynamic, lateral – 15 µm/mN
-
Stylus type – Nude Shibata on Sapphire cantilever
-
Stylus tip radius – r/R 6/50 µm
-
Tracking force range – 2.1-2.5 g (21-25 mN)
-
Tracking force, recommended – 2.3 g (23 mN)
-
*) Typical value
-
Tracking angle – 20°
-
Internal impedance, DC resistance – 5 Ohm
-
Recommended load impedance – > 20 Ohm
-
Cartridge body material – ABS/Aluminium
-
Coil wire material – Aucurum
-
Cartridge colour – Black
-
Cartridge weight – 9 g
