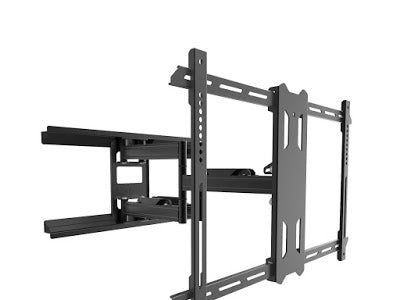

Kanto PDX650G Outdoor Full Motion TV Wall Mount

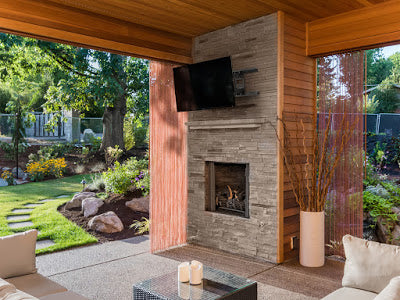

The PDX650G from Kanto is a weatherproof, outdoor full motion TV wall mount for your patios, balconies and decks. Made from stainless steel hardware, galvanized steel frame and powder-coated finish, your flat screen TV can be mounted 2″ from the wall and extended up to 21.8". Its generous tilt and swivel capabilities makes it easy to place your TV in the most optimal position.

• TV Sizes: 37” to 75”
• Weight Allowance: 125 lb (57 kg)

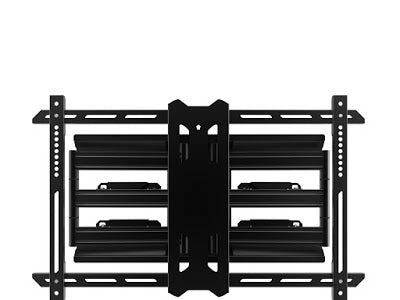

• VESA Sizes: 100×100 to 600×400
• Wall Plate: 22″ (56 cm); Accommodates dual studs with up to 16″ spacing
• Profile: 2″ (5 cm)

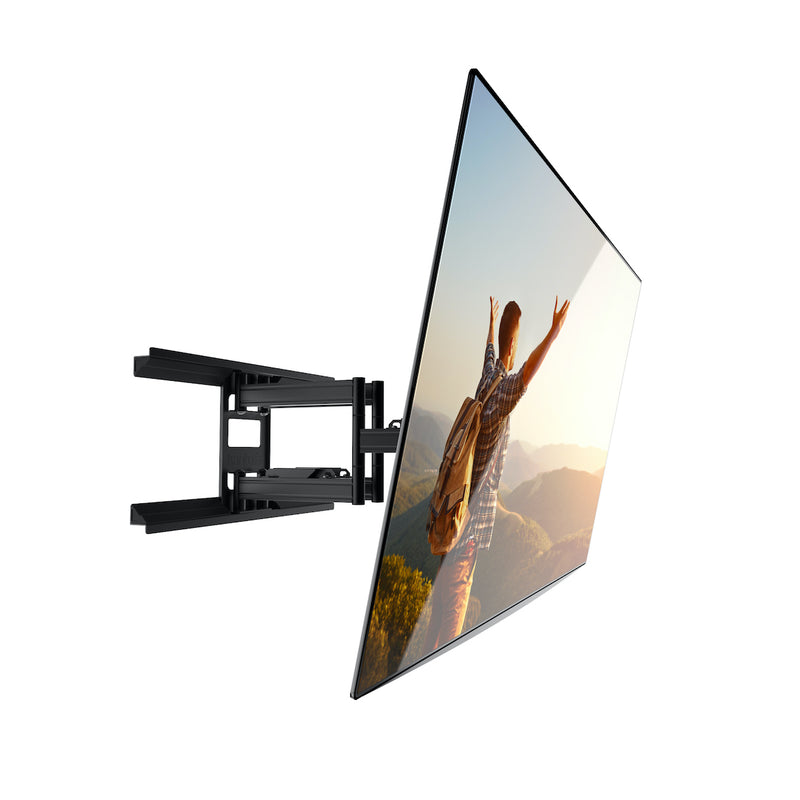

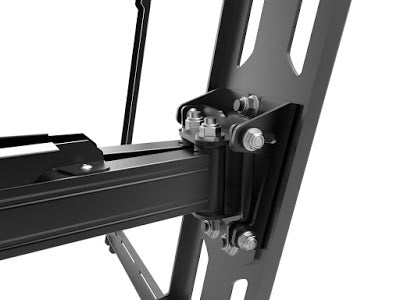

• Tilt: +15° to -3°

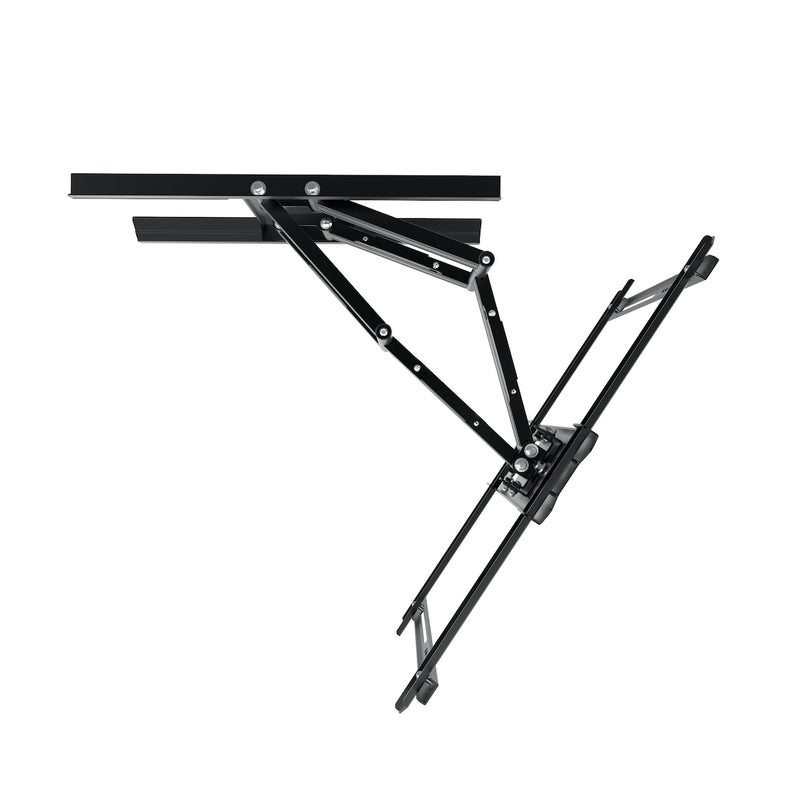

• Swivel: 80° in either direction, depending on TV size

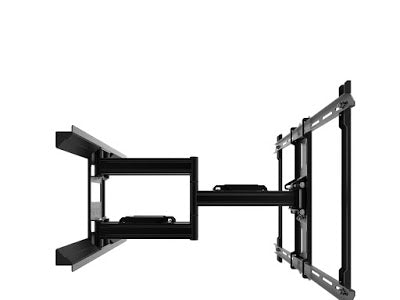

• Extension: 21.8″ (55.3 cm) from the wall
• Profile: Sits 2″ (5 cm) from the wall
• Integrated cable management
• Adjustable horizontal levelling
• Includes paper wall template for marking pilot holes, installation manual & all mounting hardware for wood stud and concrete installation

Dimension:

• 23.6" (60 cm) W x 17.2" (43.6 cm) H x 2" (5 cm) to 21.8" (55.3 cm) D

Weight:

• 22.9 lb (10.4 kg)

Warranty: 5 years
