Kanto R500 Full Motion Recessed TV Wall Mount

Free Shipping
$349.99

Only 1 in stock!

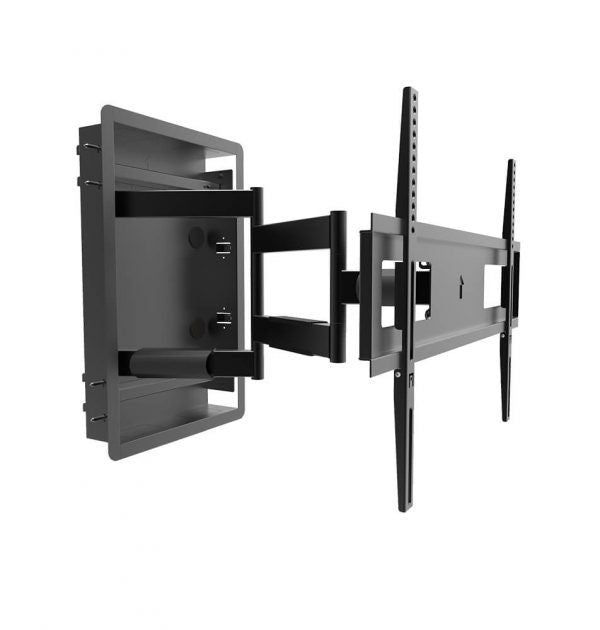

With the R500, achieving an ultra-low-profile setup is possible. Created to be installed between two studs measuring 16” apart, the TV sits only 1.25” from the wall when retracted and extends up to 27.6”. The arm also tilts -5°/+10° and swivels 180° to optimize viewing from all angles. Constructed with high-grade steel, this mount supports 46” to 80” TVs and up to 135 pounds.

  • TV Size 46″ – 80″
  • Max Weight 135 lb (62 kg)
  • Supports VESA 100×100 – 600×400
  • In-Wall Box: 14.2″ (36 cm) wide by 23.1″ (58.6 cm) tall by 3.7″ (9.3 cm) deep
  • Tilt: +10° to -5°

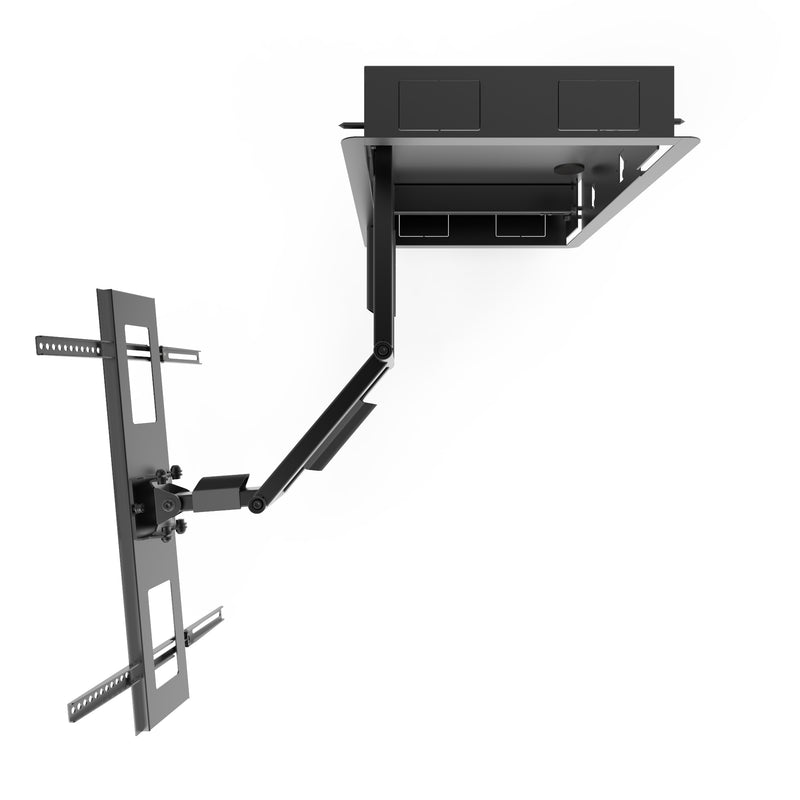

  • Swivel: 180° at full extension (with 46″ TV)

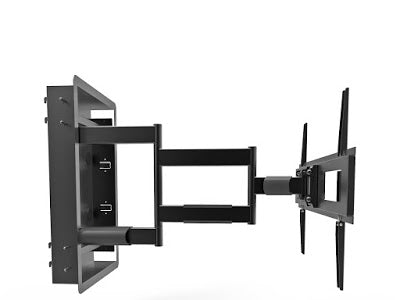

  • Extension: 27.6″ (70.2 cm) from the wall

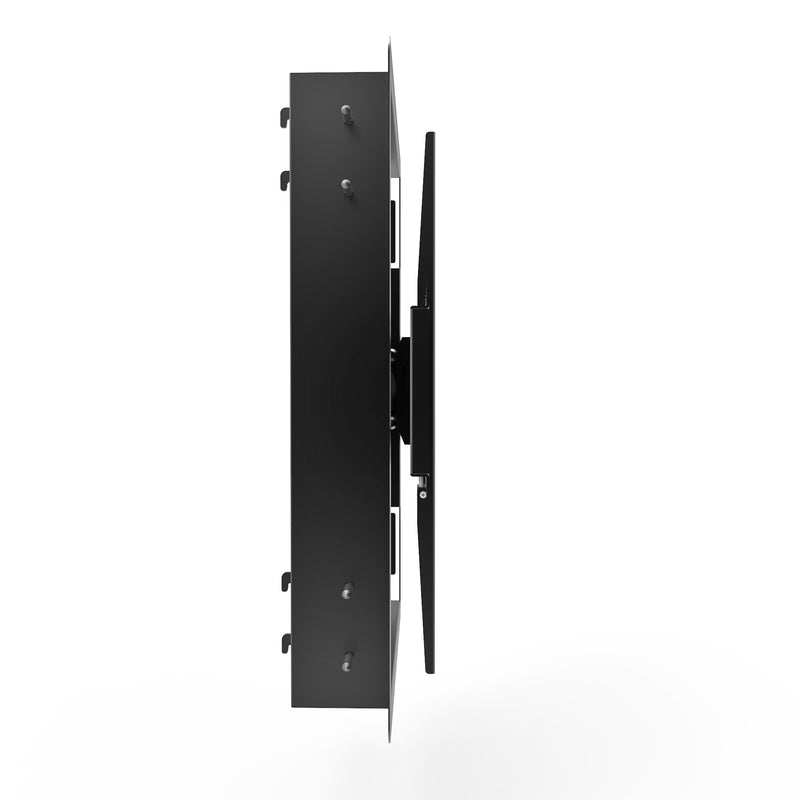

  • Profile: Sits 1.25″ (3.2 cm) from the wall

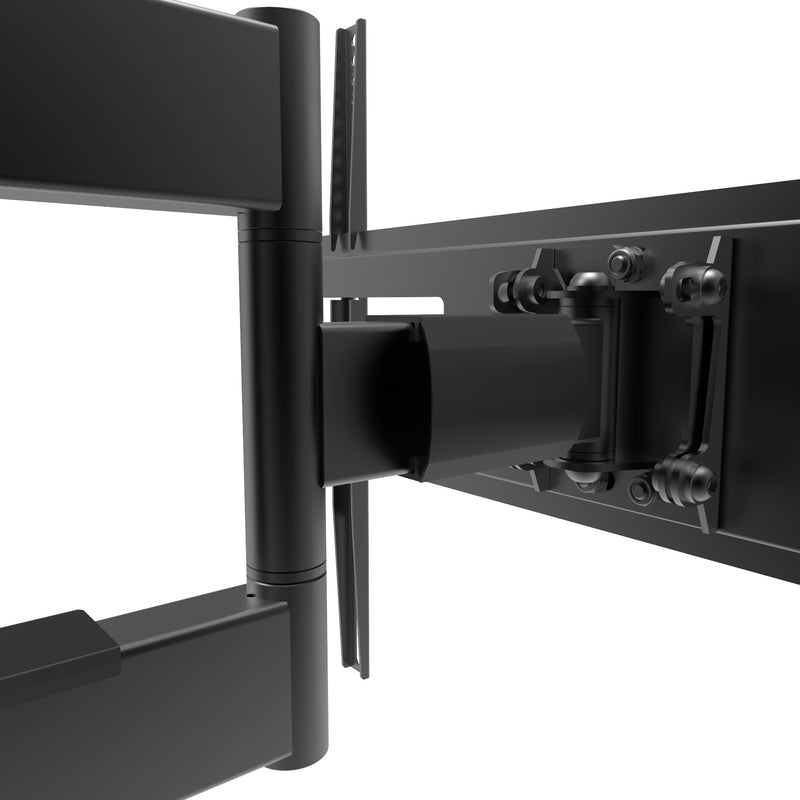

  • Integrated cable management
  • Includes:
    • Paper wall template for marking pilot holes
    • Installation manual
    • All mounting hardware for wood stud installation

Weight:

  • 36.4 lb (16.5 kg)
