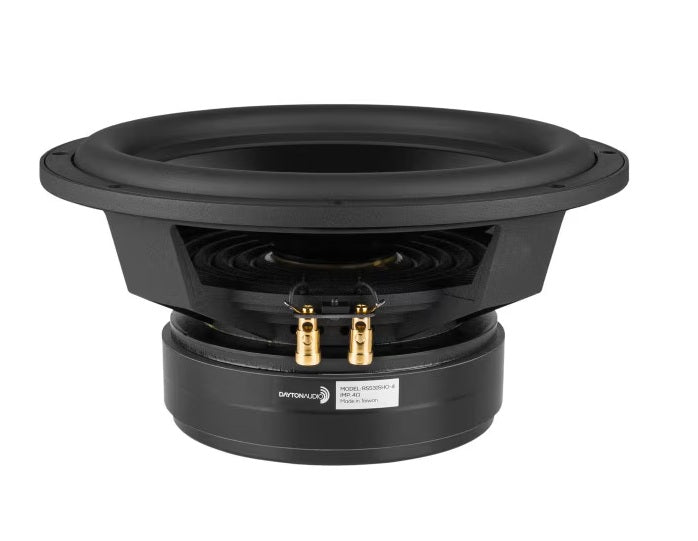

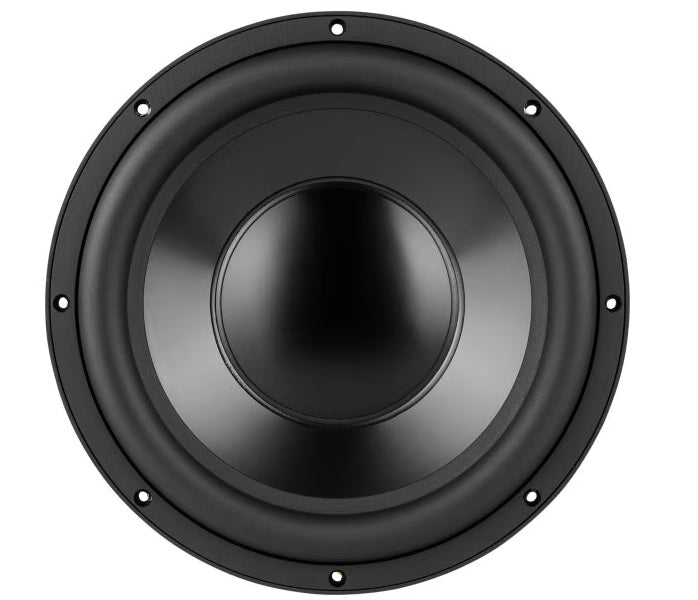

The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look.
- Extensively vented motor eliminates compression and allows quiet excursion
- Extra-thick black anodized aluminum cone for maximum rigidity
- Triple shorting ring motor for ultra-low distortion
- 4-layer coil for high power handling
- Optimized parameters for small enclosures
- Highest quality materials throughout for long-lasting performance
- Nominal Diameter 12"
- Power Handling (RMS) 700 watts
- Power Handling (max) 1400 watts
- Impedance 4 ohms
- Sensitivity 90.5 dB @ 2.83V/1m
- Frequency Response 26 - 600 Hz
- Voice Coil Diameter 64 mm
- Magnet Weight 150 oz.
Optimum Cabinet Size
-
Sealed Volume 0.33 ft.³
- Sealed F3 66 Hz
- Vented Volume 0.98 ft.³
- Vented F3 36 Hz
Warranty: 5 years replacement
This is an Non stocked item please expect 2 weeks delivery time.
