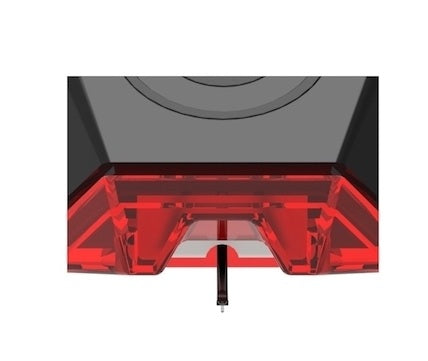

Goldring E1 Stylus

The Goldring philosophy is to promote the accurate replication of the original record production, maintaining the creative nuances, musicality and rhythm the artist intended you to hear. With the versatile E Series, this is easy to achieve; each is designed to be simple to fit to the majority of budget to medium priced turntables.

Bonded, spherical 0.6 Millimetre stylus with a round shank to fit the E1 cartridge.

• Colour Red

• Cantilever Type Carbon

• Stylus Type Bonded Spherical

• Stylus Tracking Radius 15 µm (0.6 mil)

• Equivalent tip mass 0.7 mg

• Frequency Response 20 Hz – 20 kHz ± 3 dB

• Frequency Range 12 Hz – 20 kHz

• Channel Imbalance 1.5 dB max at 1 kHz

• Channel Separation 20 dB min at 1 kHz

• Sensitivity 3.5 mV ± 3 dB at 5 cm/s lateral

• Static Compliance 20 mm/N

• Trackability 70 µm

• Vertical Tracking Angle 24 °

• Load Resistance 47 kΩ

• Load Capacitance 100 - 200 pF (150 pF nominal)

• Internal Inductance 400 mH

• Internal Resistance 470 Ω

• Cartridge Mass 6.8 g

• Cartridge Mass (inc. fixings) 7.8 g

• Fixing Centre 12.7 mm

• Playing Weight 1.75 – 2.25 g (2 g nominal)

• Cartridge Height 17 mm

• Recommended Tonearm Effective Mass 10 – 30 g
