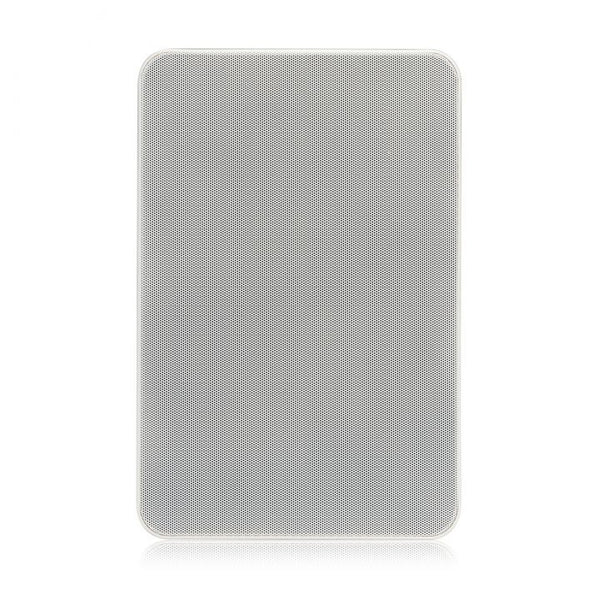

MartinLogan IW5-LCR in-wall speaker

Free Shipping

Manufactured to the highest standards of quality and performance, the new Installer Series by MartinLogan is a line of affordable, high-performance, ultra-low-profile custom installation in-ceiling and in-wall speakers. Featuring titanium dome tweeters and mineral-filled polypropylene drivers, each model comes with a remarkably robust mounting-lock system and paintable micro-perf, bezel-free grilles for a nearly invisible installation. Two all-weather models extended usage to high humidity areas. Pre-installation brackets are available for all models and square grilles are available for select in-ceiling models.

  • Frequency Response 60–20,000 Hz
  • Recommended Amplifier Power 100 Watts
  • Sensitivity 89dB
  • Compatible with 8 ohms
  • High Frequency Transducer 0.75” (1.9cm) titanium dome
  • Low Frequency Transducer Two 5.5” (14cm) mineral-filled poly cones
  • Binding Post Inputs Push style accommodates wire up to 12AWG
  • Weight 5.9 lbs. (2.7 kg)
  • Dimensions (overall size) 9.3” x 12.6” x 3.5" (23.5 x 32.1 x 8.8cm)
  • Cut-Out Dimensions 8-1/4” x 11-5/8” (20.9 x 29.5cm)
  • Projection From Wall Surface 0.31” (0.8cm)
  • Depth Behind Wall Surface 3.17” (8.1cm)
