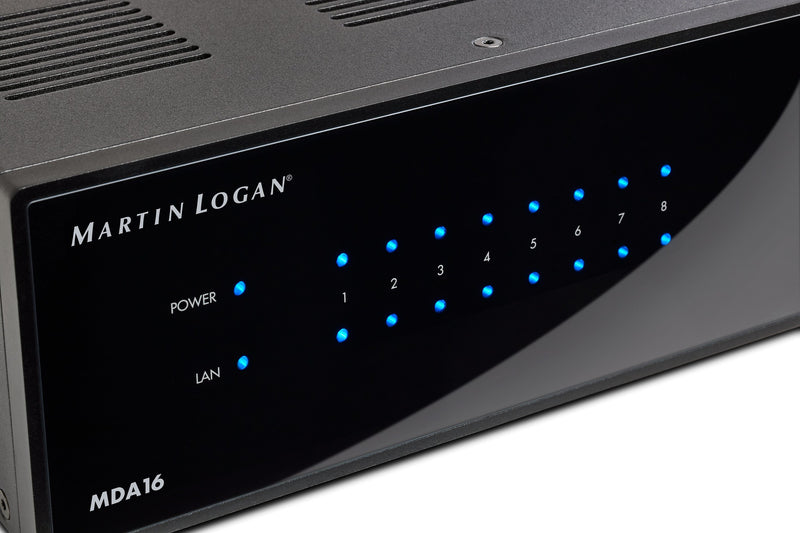

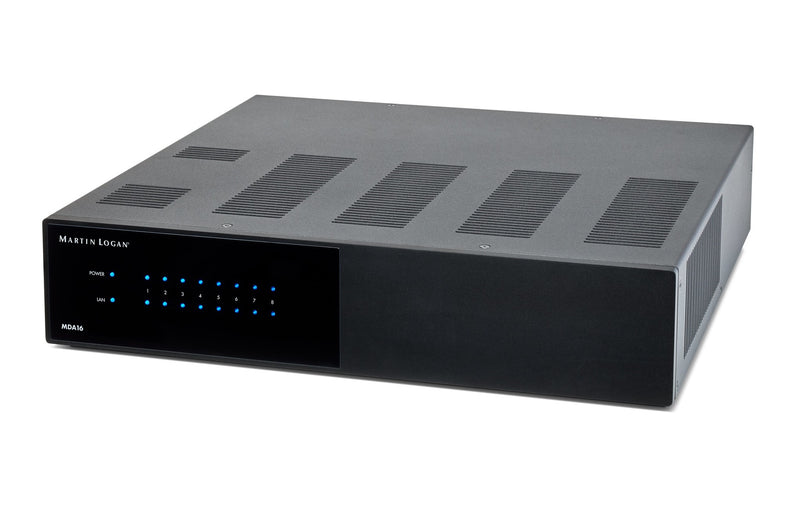

MartinLogan MDA16 Multichannel Matrix amplifier

Fully matrixed distributed audio with easy-to-use room correction. MDA Series are the most flexible and adaptive distribution solutions available today, delivering dramatic levels of performance where it matters—in the room. With full matrix switching capabilities of analog and digital inputs, and independent room correction with ARC® Genesis in each zone, MDAs allow you to install robust audio solutions throughout a home or business.

• Channels / Zones 16 channels / Up to 8 zones
• Power Output RMS per Channel (8 Ohm) 60 Watts
• Power Output RMS per Channel (4 Ohm) 120 Watts
• High Output Mode (Bridged) RMS per Channel (8 Ohm) 200 Watts
• Digital-to-Analog Converter PCM up to 24 bit/192 kHz

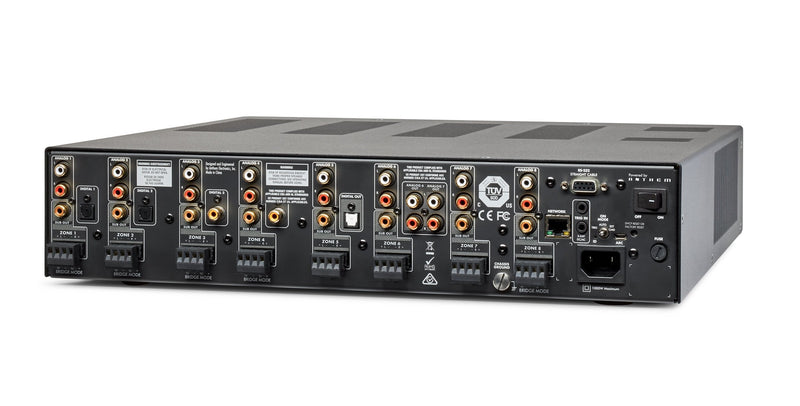

• Inputs (analog) 8x RCA pairs (left/right)
• Inputs (digital S/PDIF) 2x RCA coaxial; 2x optical (Toslink)
• Inputs (network) RJ-45 10Base-T/100 Base-TX ethernet port
• Inputs (trigger) 1x 3.5mm (5 – 24V DC/AC)
• Outputs (speaker level) 8x removable Phoenix style (left/right) accommodate wire up to 12AWG
• Output (analog, passthrough) 2x RCA pair (left/right)
• Outputs (subwoofer) 8x RCA (with bass management and room correction)
• Outputs (digital matrix) 1x optical (Toslink)
• Outputs (other) 1x 3.5mm 12V trigger
• Audio In-Out Matrix
• Controls (via web-based UI)
• Bass level: ±6dB for each zone;
• Trebel level: ±6dB for each zone;
• Level balancing: ±10dB for each zone
• Setup -Web-based user interface
• IP Control (via IP or RS-232)
• Drivers for Control4, Crestron, Savant, URC, Elan
• Rack Mount Ears / Feet Included

Dimensions: 3.5” H x 17” W x 16.4” D
