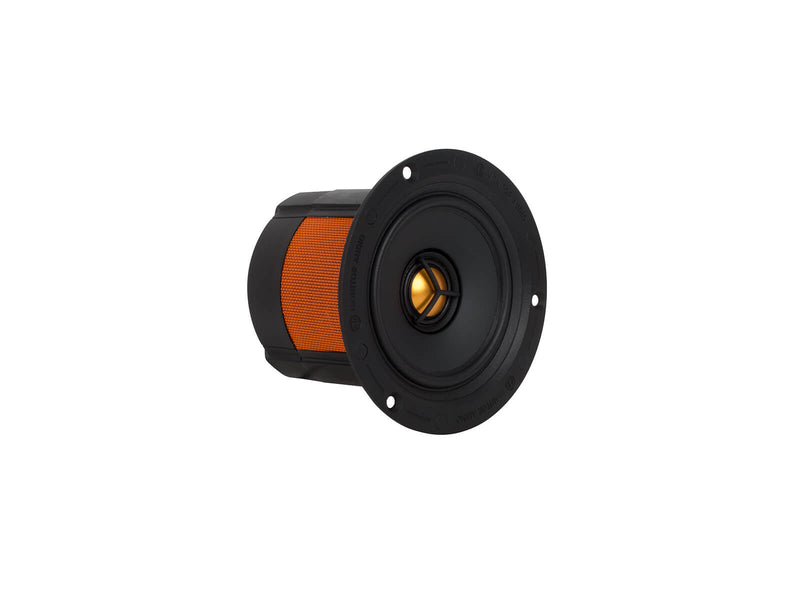

Monitor Audio CF230 In-ceiling speaker

The CF230 is Monitor Audio’s most visually discreet speaker system, providing an abundance of design possibilities for integrators, architects and installers. Its ingeniously designed retrofit and pre-construction make it a dream to install, while its C-CAM-based driver array delivers the superb audio this British maker is famed for.

• Frequency Response (-6 dB) 100 Hz – 25 kHz
• Sensitivity (1W@1M) 82.5 dB
• Nominal Impedance 8 ohms
• Maximum SPL98 dBA (each – full range)  103.3 dBA (each – Using crossover)
• Power Handling (RMS) 30 Watts (full range – IEC268-5 rating) 100 Watts Music program (Using High Pass crossover filter @120 Hz)
• Recommended Amplifier Requirements
• 10-30 Watts (full range) 10-100 Watts (Using High Pass crossover filter @120 Hz)

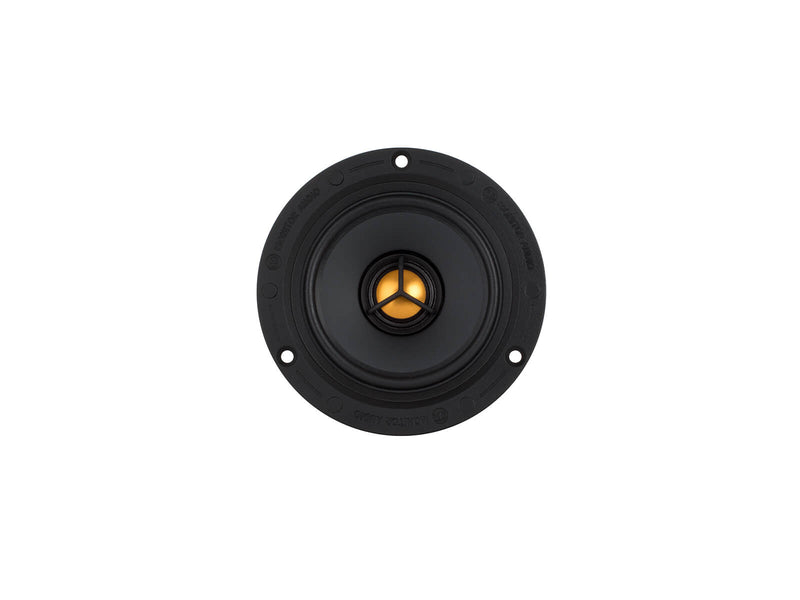

• Drive Unit Complement 3" Bass/mid-range driver, featuring C-CAM cone. Coincident mounted 19 mm tweeter with C-CAM Gold Dome

Dimensions:

• Overall Diameter (Including Grille) 112 mm (47/16")
• Mounting Depth 81.5 mm (3 3/16")
• Cut-Out Hole Diameter Flush 120 mm (43/4") Retrofit 90 mm (39/16")

Flush Fit / Retrofit brackets are REQUIRED

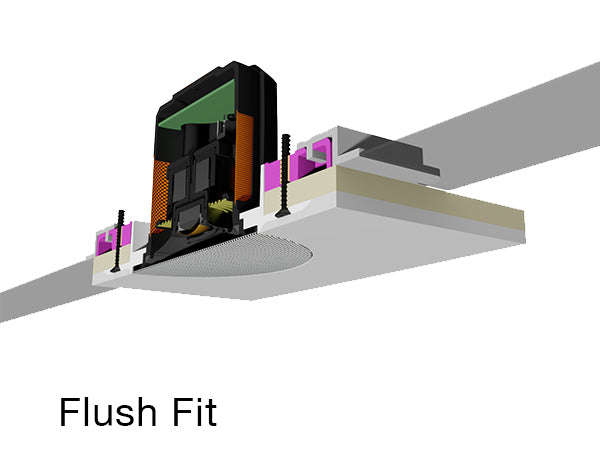

Flush Fit -

• CFB3-R Pre-Construction Bracket (round)
• CFB3-SQ Pre-Construction Bracket (square)

Retrofit - CFB3-KIT Bracket
Pre-construction bracket – Pink
