Moon By Simaudio

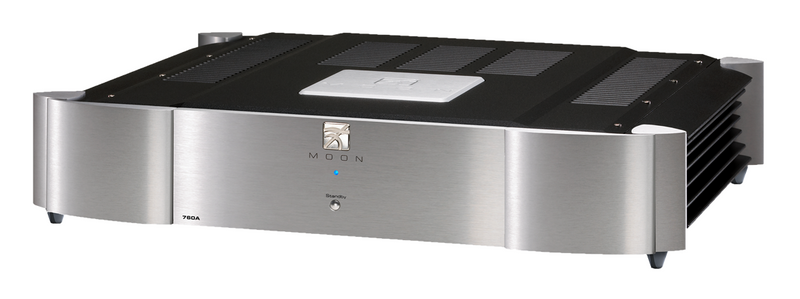

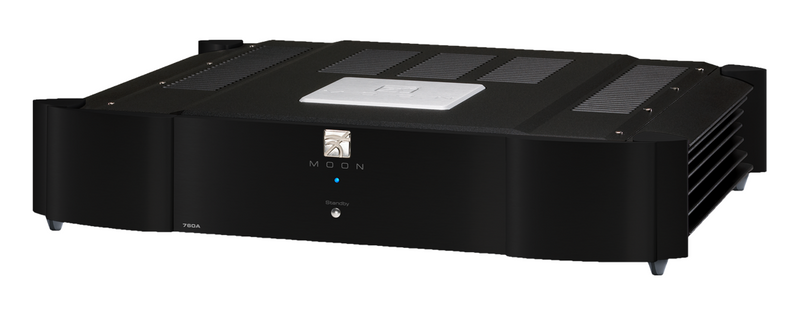

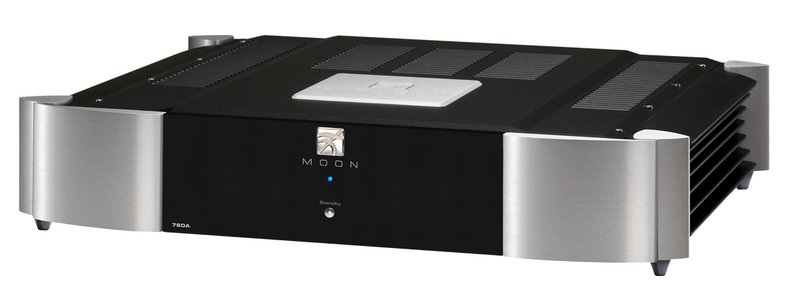

Moon 760A Power Amplifier


From Moon by Simaudio the 760A 2 ch power amplifier.

Moon's “no overall feedback” amplifier circuit design which results in the following: real-time amplification; more accurate musical reproduction with respect to tonality; non-existent transient intermodulation distortion; the elimination of common phase errors resulting from feedback.

  • Output Power at 8Ω 130 W per channel
  • Output Power at 4Ω 260 W per channel
  • Output Power - Bridged Mono at 8Ω 500 W

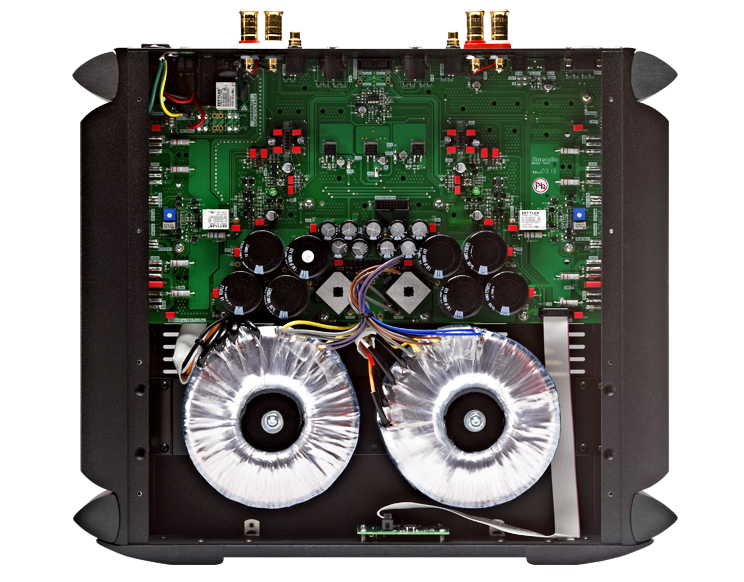

  • An oversized dual-mono power supply using a custom proprietary toroidal transformer design.
  • “Class A” power output to 5 watts for greater efficiency.

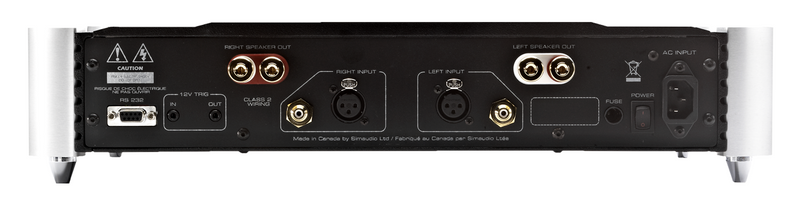

  • Full unsolicited RS-232 bidirectional feedback and 12 Volt trigger input/output for remote operation.
  • Self-diagnostic system that detects both over-heating and the presence of DC in the input signal.

Dimensions: 18.75" W x 4" H x 18.1" D

Warranty: 10 years limited parts and labour (once registered with manufacture)

This is a special order item please contact us for ordering information

Local: 604-372-2116     Toll Free: 1-844-530-5252
