Ortofon

Ortofon Concorde Music Black LVB 250 Phono Cartridge

Free Shipping
$1,079 $1,349

Only 1 in stock!

Ortofon Concorde music cartridges are designed for S shaped tonearms with SME connectors.

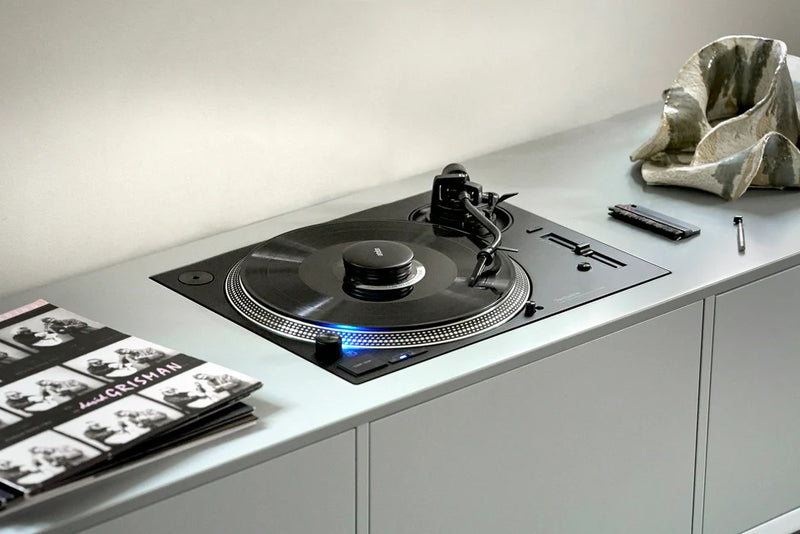

Perfect for Technics SL-1200 series

Experience unrivaled accuracy and fidelity with the Concorde Music Black LVB 250. The Concorde Music Black LVB 250 features a Nude Shibata stylus on a Boron cantilever making it the most premium Ortofon Moving Magnet cartridge on the market.

Installing a Concorde Music cartridge on a turntable is easy and straightforward, no tools required making it hassle free and convenient.

  • Channel balance at 1 kHz 1 dB
  • Output voltage at 1 kHz, 5cm/sec 6mV
  • Channel seperation at 1 kHz 26 dB
  • Channel seperation at 15 kHz 20 dB
  • Frequency response 20 Hz - 20 kHz +2 / 0 dB
  • Tracking ability at 315Hz at recommended tracking force 80 µm
  • Compliance, dynamic, lateral 15 µm/mN
  • Stylus type Shibata diamond on Aluminium cantilever
  • Stylus tip radius r/R 8/50 µm
  • Tracking force, recommended 1.8 g
  • Tracking angle 20°
  • Cartridge colour Black/Black
  • Cartridge weight 18 g
  • Recommended load resistance 47 kΩ
  • Internal inductance 815 mH
  • Recommended load capacitance 150-300 pF
