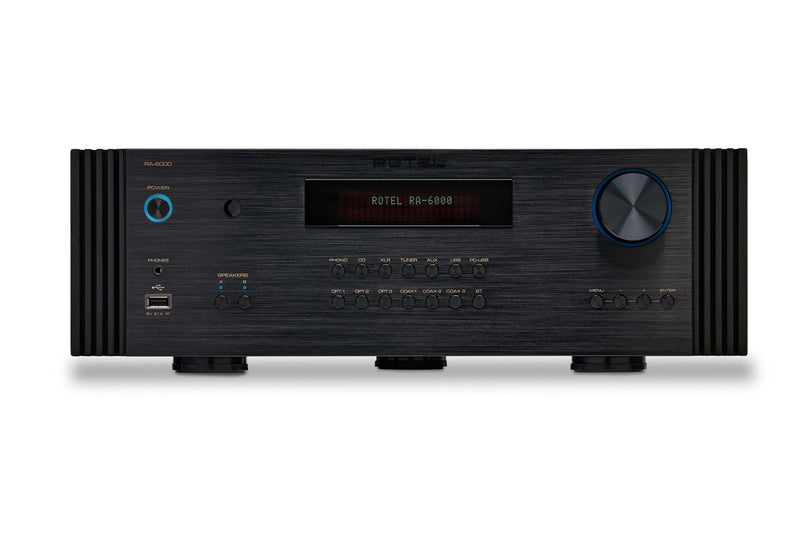

Rotel RA-6000 Diamond Series Integrated Amplifier

Free Shipping
$5,799

The Diamond Series RA-6000 Integrated Amplifier celebrates Rotel’s 60-Years of Japanese heritage. The RA-6000 supports a wide array of modern and legacy analog and digital sources delivering 350 watts of Class AB power into 4 ohms with exceptional acoustic detail and controlled rich, deep bass energy.

Digital inputs support 24-bit/192kHz audio streams. The asynchronous PC-USB input supports up to 32-bit/384kHz audio, decodes and renders MQA, and is fully certified Roon Tested. A Moving Magnet Phono stage is also included for vinyl fans.

  • Maximum Power Output 350 watts/ch (4 ohms)
  • Continuous Power Output 200 watts/ch (8 ohms)
  • Total Harmonic Distortion < 0.0075%
  • Intermodulation Distortion < 0.03%(60 Hz : 7kHz, 4:1)
  • Frequency Response Phono Input 20 Hz - 20k Hz, 0 ± 0.5 dB Line Level Inputs 10 Hz - 100k Hz, 0 ± 0.5 dB
  • Damping Factor 600 (20 Hz - 20 kHz, 8 ohms)
  • Input Sensitivity / Impedance
  • Phono Input (MM) 5.2 mV / 47k ohms
  • Line Level Inputs (RCA) 340 mV / 5.6k ohms
  • Line Level Inputs (XLR) 540 mV / 100k ohms
  • Phono Input (MM) 80 dB
  • Line Level Inputs 103 dB
  • Digital to Analog Converters Texas Instruments
  • Coaxial/Optical Digital Signals SPDIF LPCM (up to 24-bit / 192k Hz)
  • PC-USB USB Audio Class 2.0 (up to 32-bit / 384k Hz ) *Driver installation required
    Support MQA and MQA Studio (up to 24-bit / 384k Hz )
  • Roon Tested

Warranty: 5 Years parts and labour

Dimensions: 17" W x 5.66" H x 16.73" D

Weight 41.47 lbs
