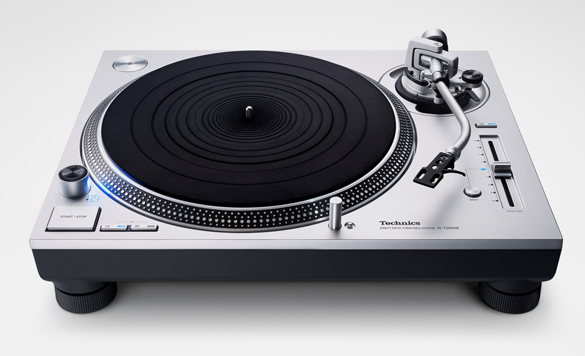

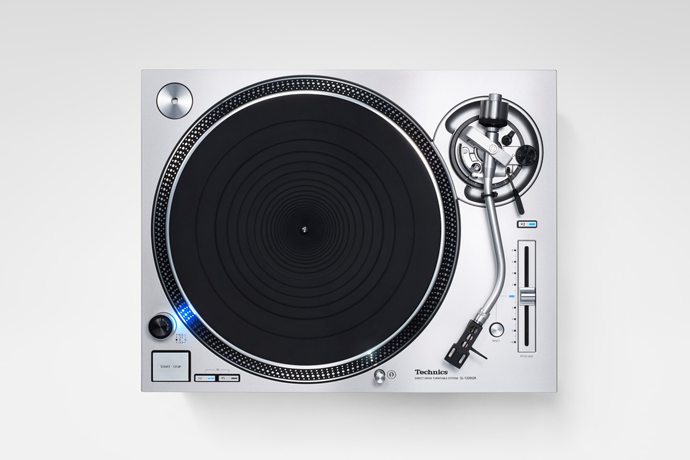

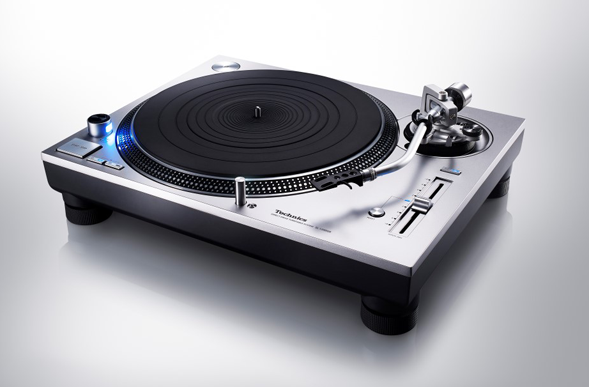

Technics SL-1200GR Turntable

Technics developed the SL-1200GR with the coreless direct-drive motor and precise motor control technology coupled with a low-vibration, high-rigidity platter and high-sensitivity tonearm.  This resulted in a rich robust sound that hits way above its price tag.

• Type Direct Drive Manual Turntable
• Turntable Speeds 33-1/3, 45 and 78 r/min
• Adjust Range ±8 %, ±16 %
• Starting Torque 2.2 kg-cm
• Build-up Characteristics 0.7 s. from Standstill to 33-1/3 r/min
• Wow And Flutter 0.025 % W.R.M.S.
• Rumble 78 dB (IEC 98A weighted)
• Turntable Platter Aluminium diecast
• Diameter : 332 mm
• Weight : Approx. 2.5 kg (5.51 lb) (Including rubber sheet)

Tonearm Section:

• Type Universal Static Balance
• Effective Length 230 mm (9-1/16")
• Overhang 15 mm (19/32")
• Tracking Error Angle Within 2° 32' (at the outer groove of 30 cm record)
• Within 0° 32' (at the inner groove of 30 cm record)
• Offset Angle 22°
• Arm-height Adjustment Range 0 - 6 mm
• Stylus Pressure Adjustment Range 0 - 4 g (Direct Reading)
• Head Shell Weight Approx. 7.6 g
• Applicable Cartridge Weight Range (without auxiliary weight)
• 5.6 - 12.0 g
• 14.3 - 20.7 g (including head shell)
• (with auxiliary weight)
• 10.0 - 16.4 g
• 18.7 - 25.1 g (including head shell)
• Cartridge Mounting Dimension JIS 12.7 mm (1/2") interval
• Head Shell Terminal Lug 1.2 mmφ 4-pin terminal lug

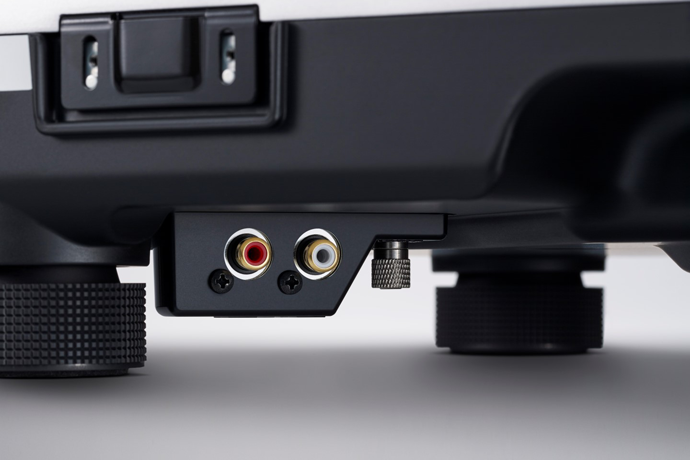

Terminals:

• Audio Output PHONO (Pin Jack) x 1
• EARTH TERMINAL x 1

Weight Approx. 11.5 kg (Approx. 25.35lbs)

Accessories Turntable, Turntable sheet, Dust cover, EP record adaptor, Balance weight, Auxiliary weight, Head shell, Overhang gauge, Screw set for cartridge, PHONO cable, PHONO earth lead, AC power supply cord, Owner's Manual
