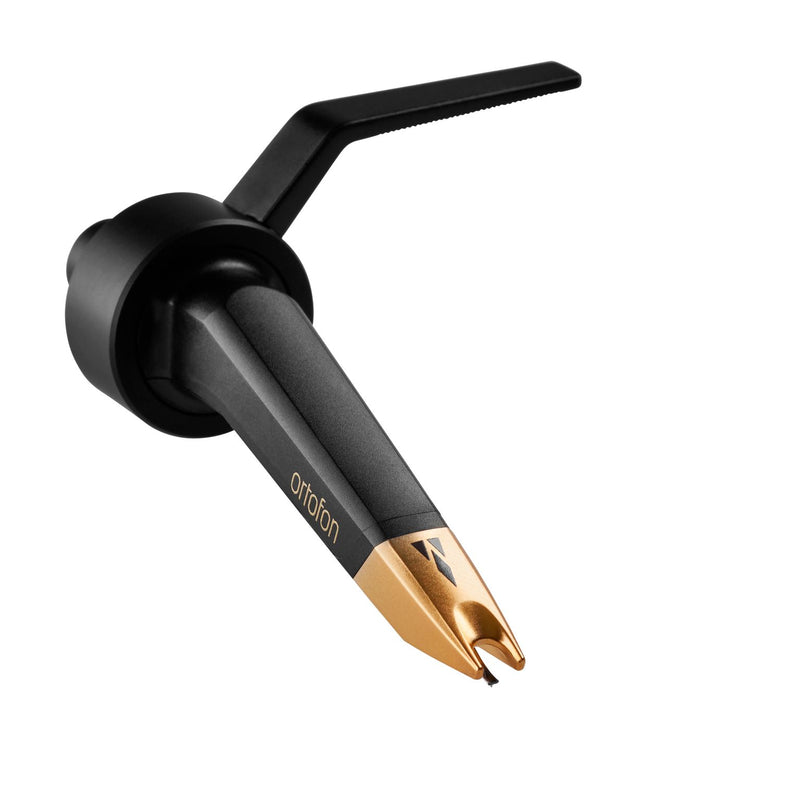

Ortofon Concorde Elite Phono Cartridge

Free Shipping
$562

Both DJs and home listeners alike will appreciate the addition of a Nude Elliptical diamond (formerly only found on HiFi models), which guarantees improved and detailed sound quality. The slim profile of the Nude Elliptical diamond makes it able to follow the groove oscillations more accurately, extract more intricate details and track even the highest frequency information.

Optimized to complement Technics 1200 series turntables, as well as those with S-shaped tonearms.

  • Output voltage at 1000 Hz, 5cm/sec. - 8,5 mV
  • Channel balance at 1 kHz - 1 dB
  • Channel separation at 1 kHz - 25 dB
  • Channel separation at 15 kHz - 15 dB
  • Tracking ability at 315Hz at recommended tracking force - 100 μm
  • Compliance, dynamic lateral - 13 μm/mN
  • Stylus type - Nude Elliptical
  • Stylus tip radius - r/R 8/18 μm
  • Tracking force range 2.0-4.0 g
  • Tracking force recommended - 3.0 g
  • Tracking angle - 20°
  • Internal impedance, DC resistance - 1.2 kOhm
  • Internal inductance - 800 mH
  • Recommended load resistance - 47 kOhm
  • Recommended load capacitance - 150-400 pF
  • Cartridge weight excluding screws - 18.5 g
  • Cartridge colour (body/stylus) - Black/Gold
  • Replacement stylus unit - ELITE
